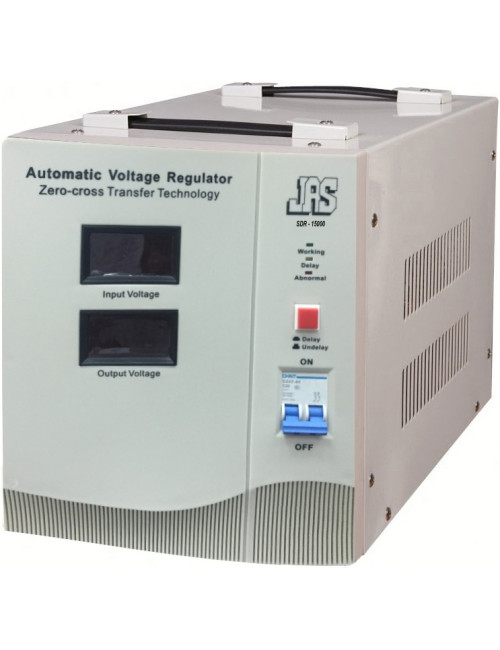

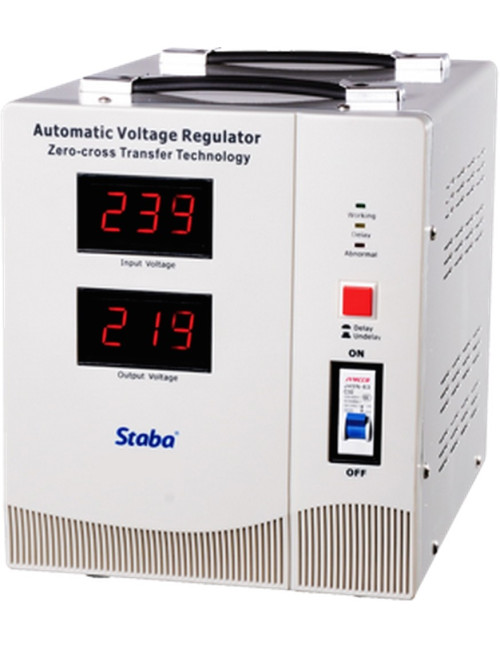

Automatic Voltage Regulator - Digital Display SDR-15000 - CHN
Reference: 34010367
KWD 90.000
- Features:-
-
+ Elegant and modern design
+ MCU controlled circuit offering precision output
+ Zero cross transfer technology integrated
+ High efficiency toroidal transformer
+ Staba patented CoolMate Technology optional
+ Full protection: over voltage, under voltage, overheat, short circuit,
and overload
+ Selectable 6s/180s delay time
+ CE certified
| Technology |
Zero Cross Transfer Technology + Patented CoolMate Technology |
|
| Transformer |
Toroidal transformer (EI transformer optional) |
|
| Material of Front Panel |
Palstic |
|
| Material of Cabinet |
Metal |
|
|
Input |
Input Voltage |
220V/230V system: 140-260V (120-280V, 100-280V, 88-280V,50-220V optional) 110V/120V system: 80-140V |
|
Input Frequency |
45-65Hz |
|
|
Output |
Rated Output Voltage |
220V/230V; 110V/120V |
|
Output Precision |
±8% ((±15%,±10%, ±5% optional) |
|
|
Output Frequency |
Sychronized with input frequency |
|
|
Efficiency |
>97% |
|
|
Display & Indication |
Input Voltage Meter |
Digital (Analog optional) |
|
Output Voltage Meter |
Digital (Analog optional) |
|
|
Green LED |
Power On |
|
|
Yellow LED |
Delaying (Output is being suppressed) |
|
|
Red LED |
Protecting (Output is cut off) |
|
|
Protection |
Over Voltage |
Output Cutoff + Red LED + ("H" shown in Digital Display, only for digital meter) |
|
Under Voltage |
Output Cutoff + Red LED + ("L" shown in Digital Display, only for digital meter) |
|
|
Overheat |
Output Cutoff + Red LED + ("C" shown in Digital Display, only for digital meter) |
|
|
Short Circuit |
Circuit breaker trip off |
|
|
Overload (optional) |
Output Cutoff + Red LED + ("F" shown in Digital Display, only for digital meter) |
|
|
Surge (optional) |
MOV |
|
|
Delay Time |
6s /180s selectable |
|
|
Certification |
CE, SON, CB, SASO |
|
|
Optional Peripheral |
USB Charging Port, Smart Cooling Fan, 110V Output |
|
|
Color |
White, Matt Black, Light Grey, Grey Silver, Burning Red, Blue |
|
|
Ambient |
Operating Temperature |
0°C - 40°C |
|
Storage Temperature |
-15°C - 45°C |
|
|
Operating Humidity |
10%-90%, Non-condensing |
|
|
Model No. |
SDR-500 |
SDR-1000 |
SDR-1500 |
SDR-2000 |
SDR-3000 |
SDR-5000 |
SDR-8000 |
SDR-10000 |
|
Capacity |
500VA / 300W |
1000VA / 600W |
1500VA / 900W |
2000VA / 1200W |
3000VA / 1800W |
5000VA / 3000W |
8000VA / 4800W |
10000VA / 6000W |
|
N.W. |
2.8kgs |
3.7kgs |
4.4kgs |
5.1kgs |
8.5kgs |
11.0kgs |
14.0kgs |
18.5kgs |
|
Machine Size |
W120 x H150 x D222 mm |
W140 x H175x D250 mm |
W215 x H268 x D307 mm |
W260 x H315 x D425 mm |
||||
|
Giftbox Size |
L265 x W125 x H165 mm |
L305 x W165 x H215 mm |
L370 x W268 x H332 mm |
L460 x W305 x H358 mm |
||||
|
Carton Size |
L393 x W275 x H350 mm |
L345 x W318 x H444 mm |
L548 x W385 x H350 mm |
L475 x W315 x H370 mm |
||||
Product Details
34010367
