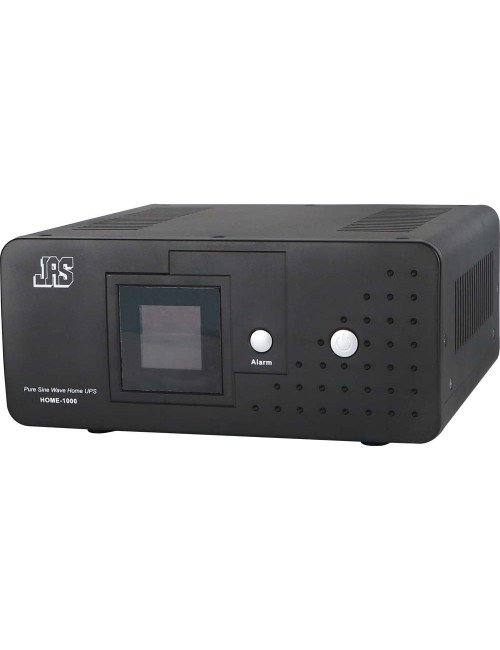

HOME-1000 LONG TIME BACKUP HOME UPS/INVERTER
Reference: 34010343
KWD 55.000
+ Pure sine wave output, suitable for all kinds of loads
+ LT (Long Time) technology, for 365 x 24 hours operation
+ Built-in AVR (Automatic Voltage Regulator)
+ Smart charging mode, up to 15A charging current
+ MCU modular design, easy for service
+ Complete protection for UPS and battery
+ Short transfer time <4ms
+ Generator compatible optional
+ CE certified
- Specifications:-
-
Technology Line Interactive Pure Sine Wave Technology
Transformer High Efficiency EI Transformer (Toroidal Transformer Optional)
Input Input Voltage Range
140-275V (120-275V Optional)
Input Frequency
45-65Hz
Output Rated Output Voltage
220V/230V
Output Voltage Range
AC Mode: ±10%; DC Mode: ±5%
Output Frequency
AC Mode: Synchronized with Input Frquency; DC Mode: 50/60Hz ±0.1Hz
Output Wave Form
AC Mode: Pure Sine Wave; DC Mode: Pure Sine Wave
Efficiency AC Mode: >97%; DC Mode: >80%
Transfer Time <4ms
Display LCD(500/800/1000VA)
Input Voltage, Output Voltage, Output Frequency, Charging Battery/Battery Capacity,
Load Capacity, AC Mode, DC Mode, Overload, Errors
LED (1500/2000VA)
Mains On, Inverter On, Charging, Overload, Battery Low
Protection Overload, Overheat,Short Circuit, Battery Over Charge/Discharge, Battery Reverse Connection
Audible Alarm Battery Mode, Overload, Overheat, Short Circuit, Battery Low Voltage, Other Errors
Charger Battery Type
Lead Acid Battery
Charging Current
3 Stage Selectable: Low 3-5A, Medium 7-9A, High 13-15A
USB Charging Port 5VDC, 500mA
Mute Button Yes
Cooling Mode Smart Cooling Fan
Ambient Operating Temperature
-5℃ - 40℃
Storage Temperature
-15℃ - 45℃
Operating Humidity
10%-90%, non-condensing
Certification CE (EMC+ LVD)
Model No.
HOME-1000
Rated Capacity
1000VA / 600W
Max. Capacity
660W
Battery Voltage
12VDC / 24VDC
N.W.
10.3kgs
Machine Size
W280 x H146 x D298 mm
Giftbox Size
L350 x W340 x H200 mm
Carton Size
L370 x W360x H440 mm
- Applications:-
-
+ Home appliances: fan, lighting, TV, DVD, refrigerator, etc
+ IT and office: PC, workstation, server, printer, photocopier, etc
+ Heating system: gas boiler, circulation pump, etc
+ CCTV: camera, DVR, etc
