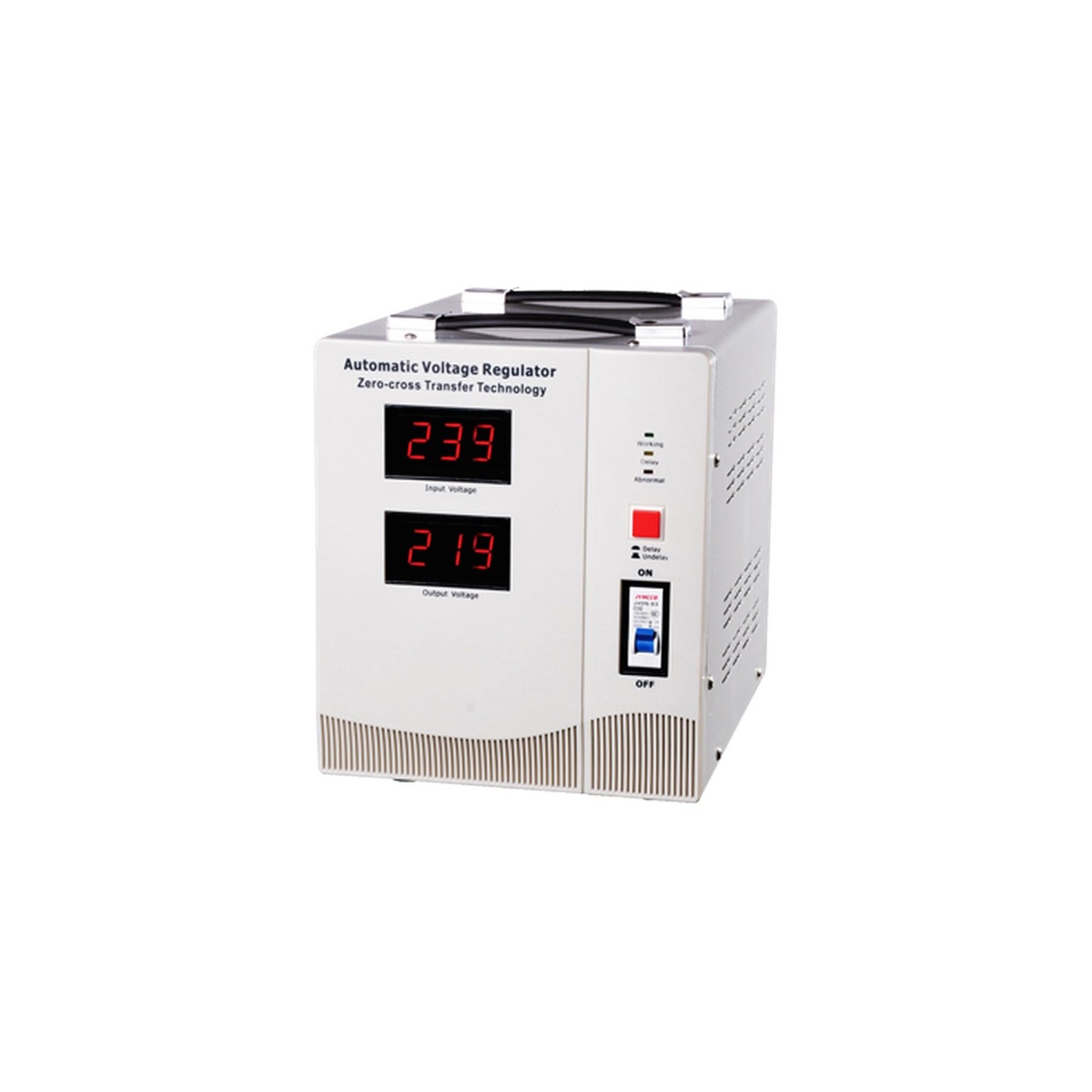

منظم كهرباء CHN - SDR - 15000

90.000 د.ك.

Reference: 34010367

Rating:

Description

Technology		Zero Cross Transfer Technology + Patented CoolMate Technology
Transformer		Toroidal transformer (EI transformer optional)
Material of Front Panel		Palstic
Material of Cabinet		Metal
Input	Input Voltage	220V/230V system: 140-260V (120-280V, 100-280V, 88-280V,50-220V optional) 110V/120V system: 80-140V
Input	Input Frequency	45-65Hz
Output	Rated Output Voltage	220V/230V; 110V/120V
	Output Precision	±8% ((±15%,±10%, ±5% optional)
	Output Frequency	Sychronized with input frequency
Efficiency		>97%
Display & Indication	Input Voltage Meter	Digital (Analog optional)
	Output Voltage Meter	Digital (Analog optional)
	Green LED	Power On
	Yellow LED	Delaying (Output is being suppressed)
	Red LED	Protecting (Output is cut off)
Protection	Over Voltage	Output Cutoff + Red LED + ("H" shown in Digital Display, only for digital meter)
	Under Voltage	Output Cutoff + Red LED + ("L" shown in Digital Display, only for digital meter)
	Overheat	Output Cutoff + Red LED + ("C" shown in Digital Display, only for digital meter)
	Short Circuit	Circuit breaker trip off
	Overload (optional)	Output Cutoff + Red LED + ("F" shown in Digital Display, only for digital meter)
	Surge (optional)	MOV
Delay Time		6s /180s selectable
Certification		CE, SON, CB, SASO
Optional Peripheral		USB Charging Port, Smart Cooling Fan, 110V Output
Color		White, Matt Black, Light Grey, Grey Silver, Burning Red, Blue
Ambient	Operating Temperature	0°C - 40°C
	Storage Temperature	-15°C - 45°C
	Operating Humidity	10%-90%, Non-condensing

Reference: 34010367
